BE-Warehouse Logistics

Reference data

• BE-Warehouse Setup
• Setup table for all logistics fields incl. necessary fields for BE-Mobile control
• Storage location
• Availability Storage Location Group Purchasing
• Availability Warehouse Group Sales
• Inventory Location Group Availability

• Availability. Inventory Zone Group

• Zones

• Reserve Zone
• Picking zone
• Pitches
• Clear pitch
• 6 variable levels / levels for definition
• Storage bin content
• Fashion fields (color, size, size range)
• Storage bin book sheet line
• Fashion Felder
• Warehouse Entries
• Fashion Felder
• Restmenge / Restmenge Base

Booking Storage Bin Items

• Adjustment of the posting functions so that the bin entries within the posting functions are collected in a temporary record and are posted in batch at the end of the posting function
• Reason: Posting the bin entries during the postings leads to a blocking of the "Warehouse Entry" table (looktable). This means that scanning functions can no longer access this table
• Affected booking functions
  • Sales bookings incl. WA booking
  • EK bookings incl. WE booking
  • Stock transfer postings (incl. without transit)
  • Booking advice

Availability

• Based on the location contained in the sales line
• Calculation of inventory taking into account the availability of the storage location group inventory
  • Consideration of Availability Stock Zone Group for the Calculation of Inventory for Storage-Managed Warehouses
• Calculation of purchases taking into account the availability of the storage location group purchasing
• Calculation of sales taking into account the availability of the storage location group sales

Allocation

• Based on the storage location in the assignment document
• Calculation of the allocation taking into account the field "Zone Group Assignment" for storage space-managed warehouses

Stock Transport Order

• Possibility to transfer stock transfers to the same storage location, but with different from/to locations within the transfer order
• However, this applies ONLY to the booking of the transfers without transit!

Calculation of key figures

• The KPI calculation for the WHS KPIs is done using the codeunit 5232652 "Calc. WHS Keydata Mgt."
• Application e.g. in page 7374 "Bin Contents"

Inventory

Basics

• There are fundamental differences in the BC standard inventory if the indicator "Controlled deposit. u. Kommiss." Is set or NOT set.

Inventory with the flag "Controlled deposit. U. Kommiss."

• The Microsoft Dynamics BC standard functions are used, which have been supplemented by comfort functions. NO adjustments have been made to the inventory codeunit!

• Use of the "Compensatory Bin Code" virtual bin from the storage location

• Step

• Variant 1

• Determination of the differences per article variant & storage location via an MDE function, which posts the differences (positive & negative) to the clearing location of the storage location
• Variant 2
• Using the Logistics Inventory Book Sheet (Page 5232660, Edit Journal Sheet Action Button)
• Action button "Calculate Inventory" determines the inventory per SKU and storage location
• Manually enter the differences in the Physical Inventory Quantity field
• Booking of the inventory via the action button "Register"
  • NO inventory entries are created, but storage bin entries are still created for the balancing bin bin with the quantity 0 via SKUs WITHOUT difference!
  • Differences are posted to the compensation parking space

1. Step

2. During the year, the differences in the clearing location are booked via a normal article book sheet (no actual inventory step)

3. E.g. Page 40
4. Action button "Calculate compensation" determines the quantity of the compensation space (entrance / exit)
   • Determination at SKU & Warehouse Level
5. Posting the differences via the "Post" action button

1. Step

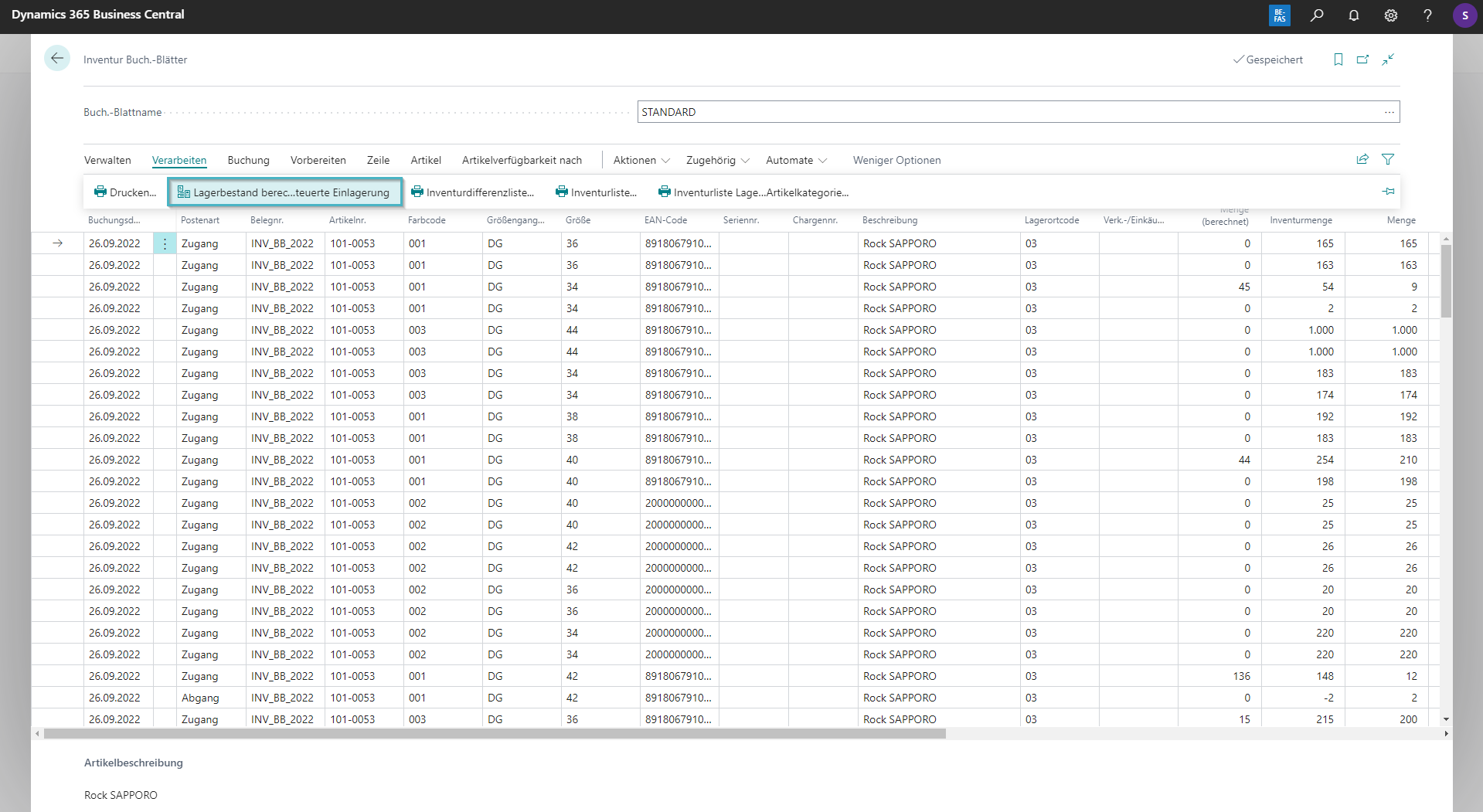

2. Actual inventory via the inventory book sheet

3. Inventurbuchblatt (Page 392)
4. Action Button "Calculate Inventory – Location-Controlled Storage"
5. Creation of inventory lines per SKU & storage location
6. Determination of the quantities of compensation parking space
7. This means that NO inventory quantities have to be entered manually
8. Booking via the action button "Book"

Inventory without the license plate "Controlled deposit. u. Kommiss."

• Only the Microsoft Dynamics BC standard functions are used. NO adjustments have been made to the inventory codeunit!
• DO NOT use the "Offset Bin Code" virtual bin code from the storage location

• The Logistics Inventory Book Sheet cannot be used

• Step

• Actual inventory via the inventory book sheet

• Inventory Book Sheet
• Action Button "Calculate Inventory – NOT Location-Guided Storage" (!!)
• Creation of inventory lines per SKU & storage location & storage location
• NO determination of the quantities of compensation parking space
• The inventory quantities must therefore be entered manually (!!)
• Booking via the action button "Book"

Conceptual and implementation-relevant considerations

Pitch assignment article

Request

• MDE Mask
• Layout
  • 1 Scannfeld
  • Display Panels
  • Parking space (storage location, pitch description)
  • EAN (article no., item no. 2, description, GG, G, color, color text)
• Process:
  • Scanning 1st Value (EAN)
  • Barcode Info – Call Function
    • Interpreting the barcode in the BC
    • Return (Type, Code1 (e.g. Item No. or Storage Location), Code2 (Variant Code or Location No.))
  • Parking space creation function
    • Return
    • Further parameters required
    • OK + Text
    • Fehler + Text
  • Executing the Info function Depending on the type from the Barcodeinfo function
    • e.g. variant info or parking space info
  • Scanning 2nd Value
  • --> Scanning analog 1st value
  • --> Display of the successful/unsuccessful text from the Create Pitch function
  • If successful, clear all display fields
  • If not successful, then "leave" scanned barcode + displayed information
